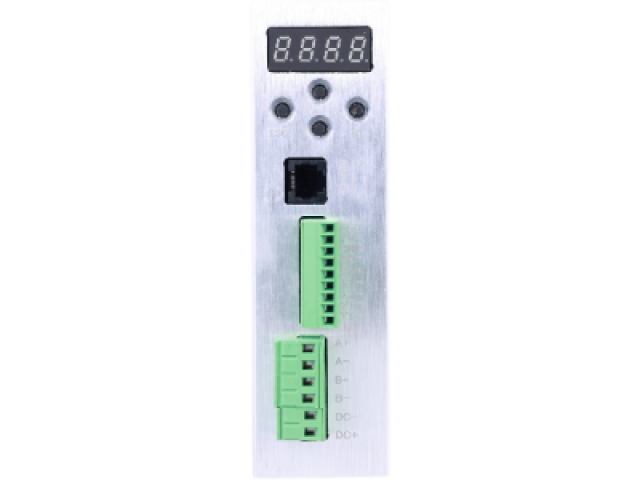

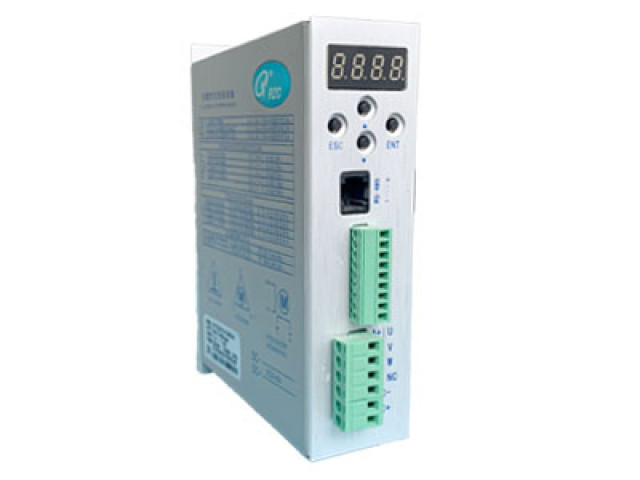

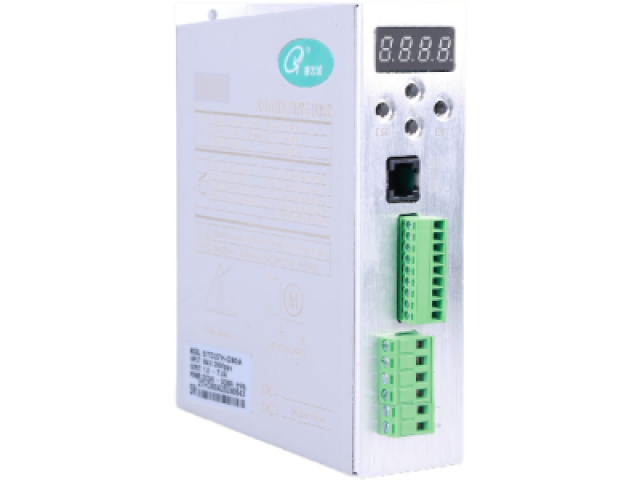

STD27H-D80 two-phase digital stepper driver

STD27H-D80 is based on the two-phase digital stepper driver plus a feedback port to capture the actual rotation position of the motor, to ensure that the stepper motor does not lose step, does not lose step, greatly improve the accuracy and reliability of the stepper motor.

Online Inquiry

Product Detail
Specifications
Product selection
Dimensions

Using vector control and micro-subdivision control technology, it has greatly improved the running stability, noise, vibration and heat generation compared with traditional drives
Strong and weak electrical isolation, strong anti-interference ability, good stability
Adaptive control of attenuation mode and attenuation time, the switch tube runs in the minimum switching mode, the heat generation is greatly reduced during operation, and the distortion of the current waveform is small (the current waveform above 8r/s is still maintained as a sine wave)
It has 16 levels of constant torque subdivision at equal angles, and the maximum resolution is 60,000 steps/rpm
The maximum response frequency can reach 200Kpps
Acceleration and deceleration curve configuration of the maximum motor no-load speed up to 50R/S (or 3000RPM)
When the step pulse stops for more than 100ms, the coil current is automatically reduced to 20%-80%
Photoelectric isolated signal input/output
The drive current is adjustable from 0.3A/phase to 6A/phase
Single power input, voltage range: DC DC24-50/80V± within 15%.
Error protection: no motor detection, overtemperature protection, overcurrent protection, internal anomaly protection
Phase memory function (Note: After the input pulse stops, the actuator automatically remembers the motor phase at the time, and the driver automatically restores the motor phase when the power-up is restarted or the MF signal changes from active to invalid).

Power supply voltage and fluctuation range	DC DC24-50/80V±15%
Power frequency and fluctuation range	50/60Hz, within ±5%
control method	Sine wave PWM control, current control mode
dynamic braking	built-in
Protective function	Overcurrent, driver overheating, short circuit between phases
Maximum input pulse frequency	200Kpps (open collector input occasion) can be customized up to 500Kpps
Number of subdivisions	Up to 60000 pulses/revolution
cooling method	Self-cooling, choose air-cooling under special circumstances
ambient temperature	0℃~+55℃(no freezing) Storage: -20℃~+65℃ (not frozen)
environment humidity	Below 90%RH (non-condensing)
surroundings	Indoor (no sunlight) no corrosive gas, flammable gas, dust
Altitude	Altitude below 1000m
vibration	5.0m/s²
