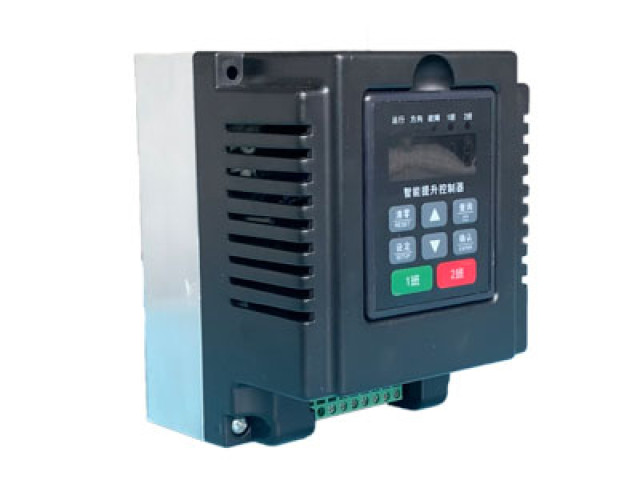

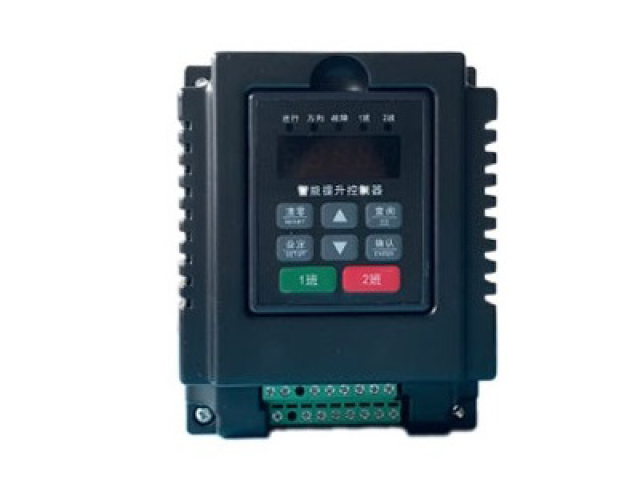

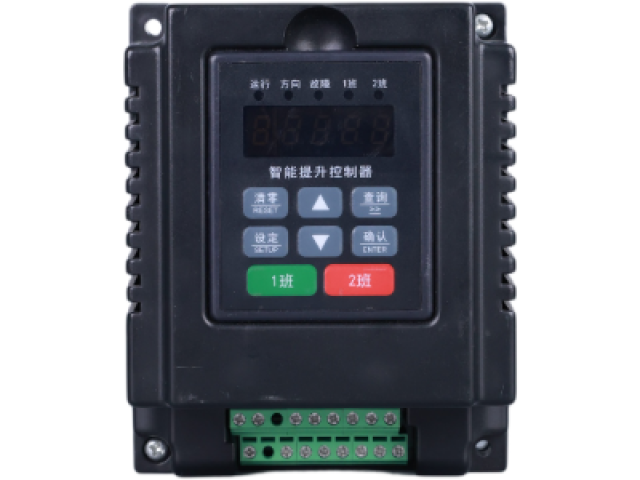

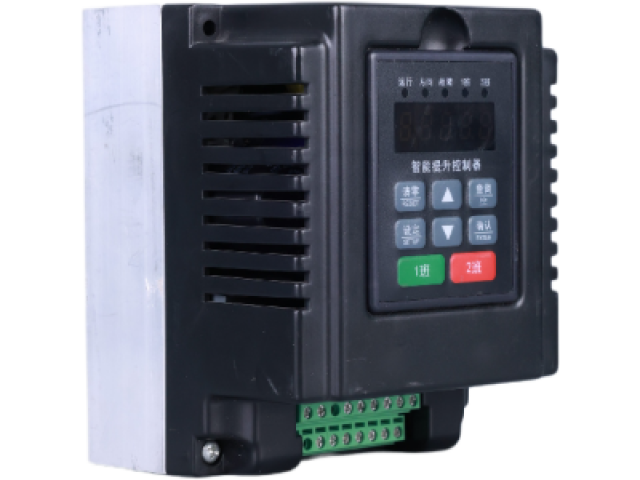

STD27H-A220C Circular Loom Intelligent Lift Controller (2 Phase)

The STD27H-A220C is a dedicated driver for circular looms, suitable for low-voltage drives for V4.8 circular looms and V5.0 printing machinery.

Adopt MCU digital control technology, rich in functions and excellent performance;
Adopt a digital menu option, modify the settings conveniently and quickly;
It can realize complex motion control such as slow acceleration, slow deceleration, fast stop, electromagnetic braking, etc.;
Quick stop function, which can realize the rapid and accurate positioning of motor stop;
The use of semiconductor power components to achieve contactless, long life, maintenance-free.

Voltage	Mains 220V
Power frequency	50/60Hz, within ±5%
Control method	Sine wave PWM control, current control mode
Dynamic braking	built-in
Protective function	Overcurrent, driver overheating, short circuit between phases
Maximum input pulse frequency	200Kpps
Number of subdivisions	Up to 60000 pulses/revolution
Cooling method	self-cooling
Ambient temperature	0℃~+55℃(no freezing) Storage: -20℃~+65℃ (not frozen)
Environment humidity	Below 90%RH (non-condensing)
Surroundings	Indoor (no sunlight), no corrosive gas, flammable gas, dust
Altitude	Altitude below 1000m
Vibration	5.0m/s2
