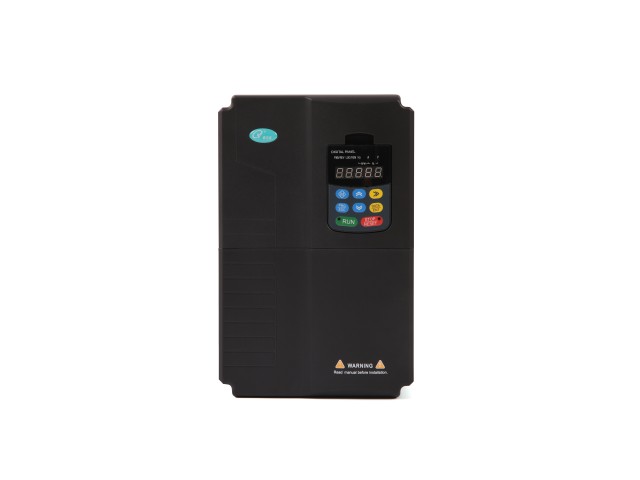

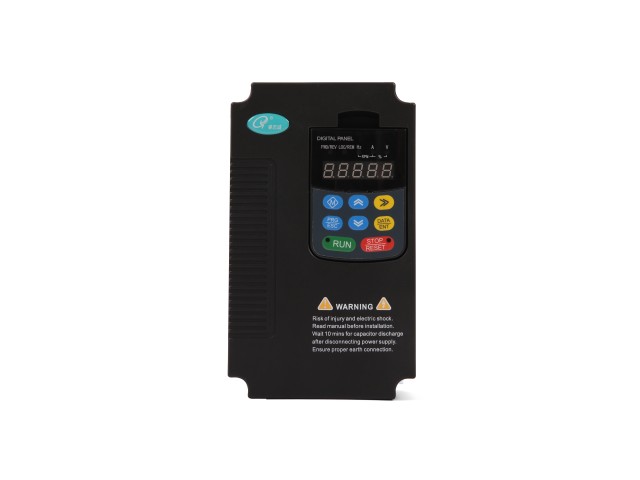

Q05 series frequency converter is a special frequency converter for inspection.
Three-phase 380V 15-315KW
|

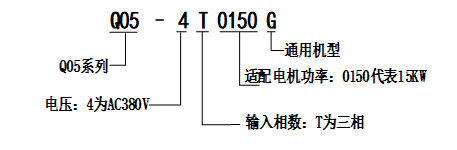

Model |
Rated power (kW) |
Rated current (A) |
Suitable for water pump |
|
|
Current (A) |
Power (P) |
|||
|
Q05-4T0150G |
15 |
30 |
30 |
15 |
|
Q05-4T0180G |
18.5 |
37 |
37 |
18.5 |
|
Q05-4T0220G |
22 |
44 |
44 |
22 |
|
Q05-4T0300G |
30 |
60 |
60 |
30 |
|
Q05-4T0370G |
37 |
74 |
74 |
37 |
|
Q05-4T0450G |
45 |
90 |
90 |
45 |
|
Q05-4T0550G |
55 |
110 |
110 |
55 |
|
Q05-4T0750G |
75 |
150 |
150 |
75 |
|
Q05-4T0900G |
90 |
180 |
180 |
90 |
|
Q05-4T1100G |
110 |
220 |
220 |
110 |
|
Q05-4T1320G |
132 |
264 |
264 |
132 |
|
Q05-4T1600G |
160 |
320 |
320 |
160 |
|
Q05-4T1850G |
185 |
370 |
370 |
185 |
|
Q05-4T2000G |
200 |
400 |
400 |
200 |
|
Q05-4T2500G |
250 |
470 |
470 |
250 |
|
Q05-4T3150G |
315 |
600 |
600 |
315 |
|

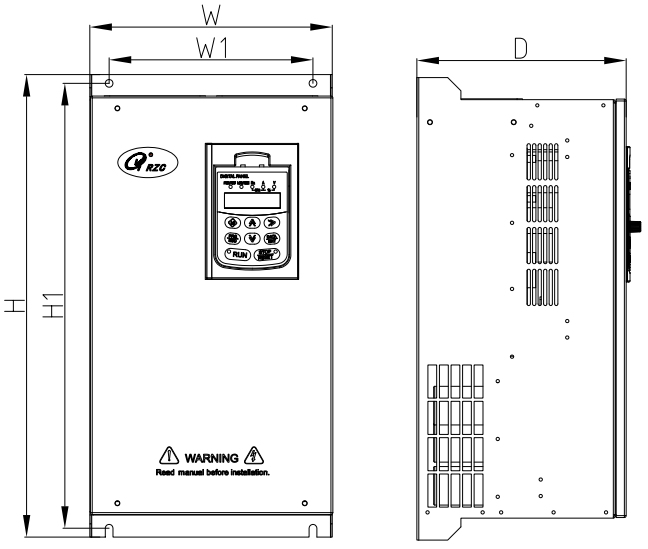

Model |
Dimensions mm |
Installation dimension mm |
Mounting aperture mm |
|||
|
H |
W |
D |
H1 |
W1 |
d |
|
|
Q05-4T0150G |
220 |
130 |
181 |
210 |
116 |
M5 |
|
Q05-4T0180G |
||||||
|
Q05-4T0220G |
||||||
|
Q05-4T0300G |
322 |
208 |
192 |
306 |
190 |
M6 |
|
Q05-4T0370G |
||||||
|
Q05-4T0450G |
||||||
|
Q05-4T0550G |
||||||
|
Q05-4T0750G |
||||||
|
Q05-4T0900G |
||||||
|
Q05-4T1100G |
470 |
256 |
221 |
450 |
196 |
M7 |
|
Q05-4T1320G |
||||||
|
Q05-4T1600G |
575 |
320 |
235 |
553 |
220 |
M10 |
