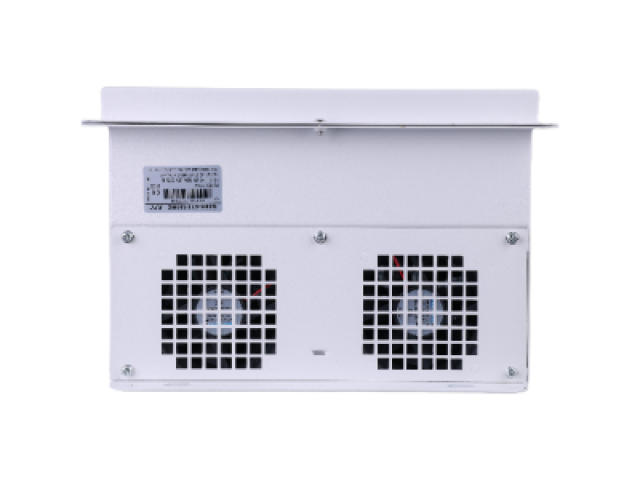

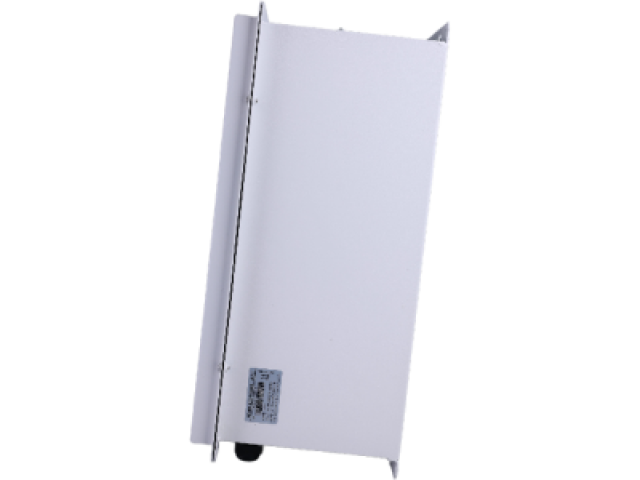

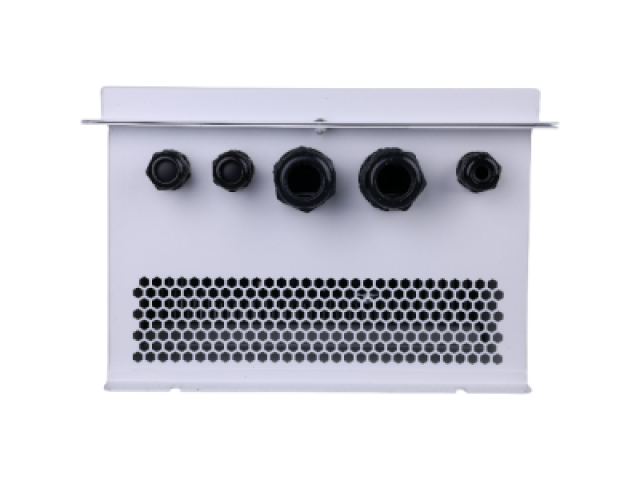

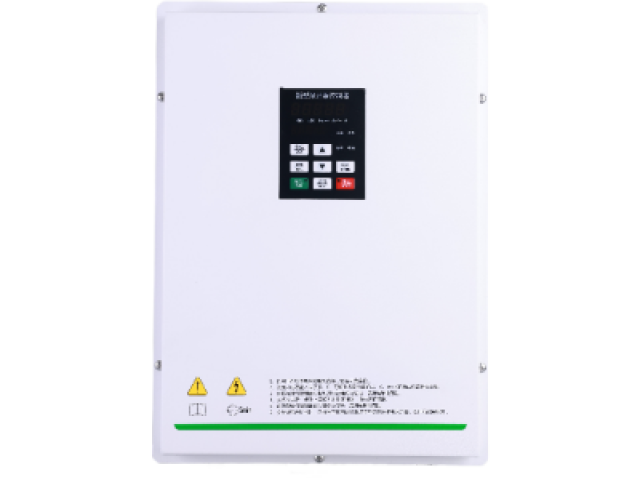

The Q20ES is a dedicated inverter for photovoltaic water pumps. It features automatic switching between solar power and utility grid power and achieves an IP65 waterproof rating.
Online Inquiry|

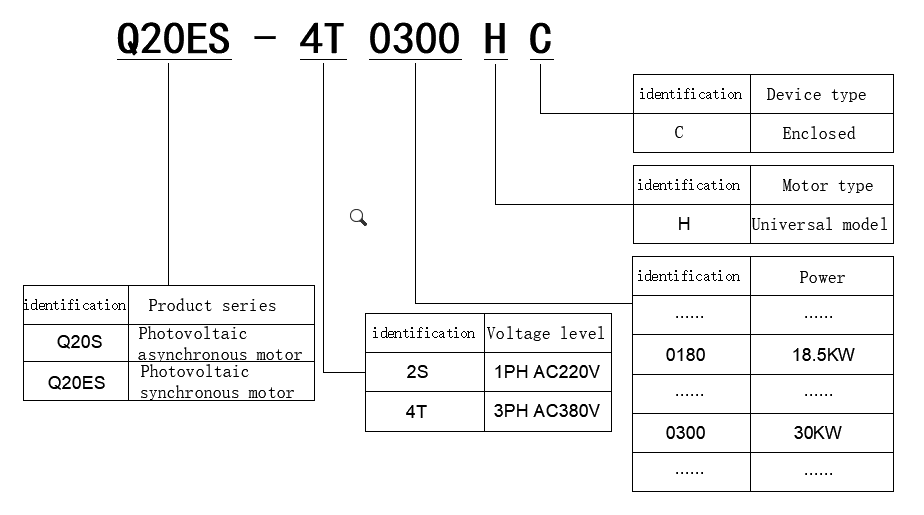

Item No |
Rated Output Power (KW) |
Input Current (A) |
Rated Output Current (A) |
Compatible Motor (KW) |
|
Q20ES-4T0150HC |
15 |
50.3 |
33 |
15 |
|
Q20ES-4T0180HC |
18 |
60.0 |
38 |
18 |
|
Q20ES-4T0220HC |
22 |
69.3 |
45 |
22 |
|
Model |
Dimension(MM) |
Installation Dimension(MM) |
||||
|
W |
H |
D |
W1 |
W2 |
Hole Diameter |
|
|
Q20ES-4T0150H |
298.4 |
420 |
181 |
180 |
402.5 |
M6 |
|
Q20ES-4T0180H |
298.4 |
420 |
181 |
180 |
402.5 |
M6 |
|
Q20ES-4T0220H |
298.4 |
420 |
181 |
180 |
402.5 |
M6 |
