Q07 series inverter is for the working environment is more harsh and developed products, its dustproof and waterproof grade of IP65, can completely place dust into the body, and water with each degree of low pressure injection is not affected.
Single phase 220V 0.4-3.7KW Three-phase 380V 0.75-315KW
|
Voltage level |
220V class |
||
|
Model |
FS21 |
||
|
Output |
Frequency range (Hz) |
0.01～3000.00Hz |
|
|
Constant speed accuracy (Hz) |
VF control: ± 0.5% ; SVC vector control: ± 0.2% |
||
|
Power supply |
Rated Voltage (V) |
Single Phase 220V AC |
|
|
Voltage fluctuation and frequency |
Frequency: 50/60 Hz, permissible voltage fluctuation: ± 15% |
||
|
Control characteristic |
Control Mode |
V/F control technology, SVC speed sensorless vector control technology |
|
|
Output frequency resolution |
Wide Speed Range, high control accuracy: V/F (1:50) , SVC (1:100) |
||
|
Torque characteristics |
Low frequency band capacity: V/F (1Hz/150%) , SVC (0.5 Hz/150%) |
||
|
Overload tolerance |
150% 1 minute, 180% 10 seconds, 200% 0.5 seconds |
||
|
Acceleration and deceleration time |
0.1-3000 seconds (can be set separately) |
||
|
Other functions |
Overvoltage stall prevention, DC brake, DC brake start frequency setting, parameter lock/reset, carrier frequency adjustment |
||
|
Protective function |
Overvoltage, overcurrent, low voltage, overload limit, overheat, abnormal state self-detection |
||
|
Industry protection function |
Water shortage protection, overpressure protection, burst pipe protection, double pump function, energy saving control |
||
|
Cooling mode |
750W and below self-cooling, above forced cooling air |
||
|
Environment |
Place of use |
Below 1000m, above 1000m 1% capacity reduction per 100m |
|
|
Ambient temperature |
-20℃～40℃ |
||
|
Holding temperature |
-30℃～80℃ |
||
|
Vibration |
20HZ以下9.80m/s²（1G）20～50HZ 5.9m/s²（0.6G） |
||
|
Frequency converter model |
Rated output power (KW)
|
Input Current (a) |
Rated output current (a)
|
Adaptor motor (KW) |
|
Single-phase input power supply: 220V (-15% ~ + 15%) , 50/60Hz |
||||
|
Q07-2S0004HE |
0.4 |
6.8 |
3.0 |
0.4 |
|
Q07-2S0007HE |
0.75 |
10.5 |
4.5 |
0.75 |
|
Q07-2S0015HE |
1.5 |
14.5 |
7.0 |
1.5 |
|
Q07-2S0022HE |
2.2 |
21.4 |
10.0 |
2.2 |
|
Q07-2S0037HE |
3.7 |
35.9 |
17.0 |
3.7 |
|
Three-phase input power supply: 380V (-15% ~ + 15%) , 50/60Hz |
||||
|
Q07-4T0007HE |
0.75 |
3.5 |
2.5 |
0.75 |
|
Q07-4T0015HE |
1.5 |
6.2 |
4.0 |
1.5 |
|
Q07-4T0022HE |
2.2 |
9.2 |
5.5 |
2.2 |
|
Q07-4T0040HE |
4.0 |
14.9 |
9 |
4.0 |
|
Q07-4T0055HE |
5.5 |
21.5 |
13 |
5.5 |
|
Q07-4T0075HE |
7.5 |
28.9 |
18 |
7.5 |
|
Q07-4T0110HE |
11 |
39.0 |
24 |
11 |
|
Q07-4T0150HE |
15 |
50.3 |
33 |
15 |
|
Q07-4T0180HE |
18 |
60.0 |
38 |
18 |
|
Q07-4T0220HE |
22 |
69.3 |
45 |
22 |
|
Q07-4T0300HE |
30 |
86 |
60 |
30 |
|
Q07-4T0370HE |
37 |
104 |
75 |
37 |
|
Q07-4T0450HE |
45 |
124 |
91 |
45 |
|
Q07-4T0550HE |
55 |
150 |
112 |
55 |
|
Q07-4T0750HE |
75 |
160 |
150 |
75 |
|
Q07-4T0900HE |
90 |
180 |
175 |
90 |
|
Q07-4T1100HE |
110 |
196 |
210 |
110 |
|
Q07-4T1320HE |
132 |
232 |
250 |
132 |
|
Q07-4T1600HE |
160 |
282 |
300 |
160 |
|
Q07-4T2000HE |
200 |
352 |
380 |
200 |
|
Q07-4T2200HE |
220 |
385 |
415 |
220 |
|
Q07-4T2800HE |
280 |
491 |
520 |
280 |
|
Q07-4T3150HE |
315 |
552 |
585 |
315 |

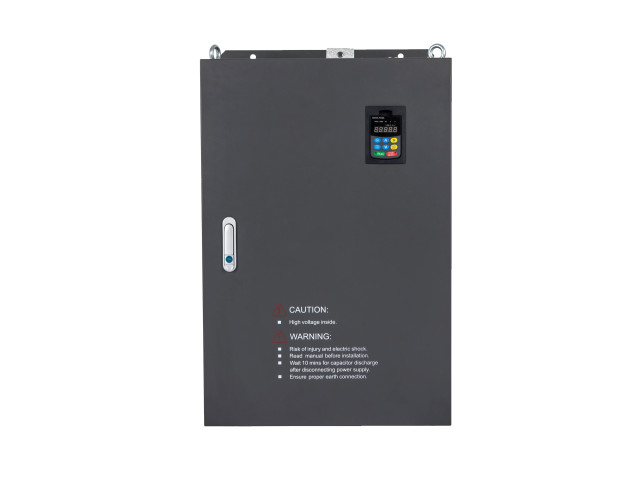

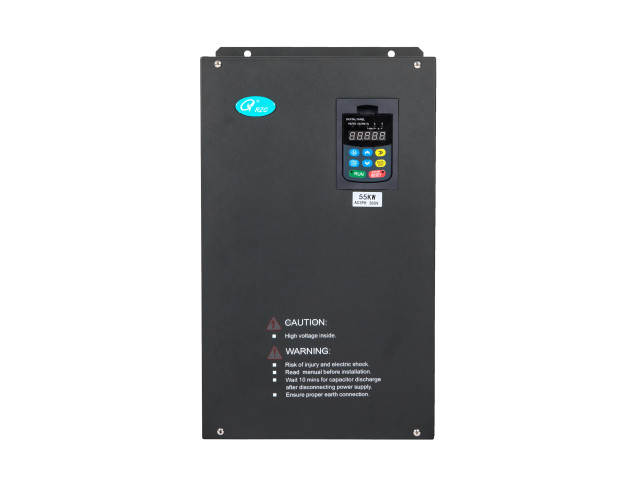

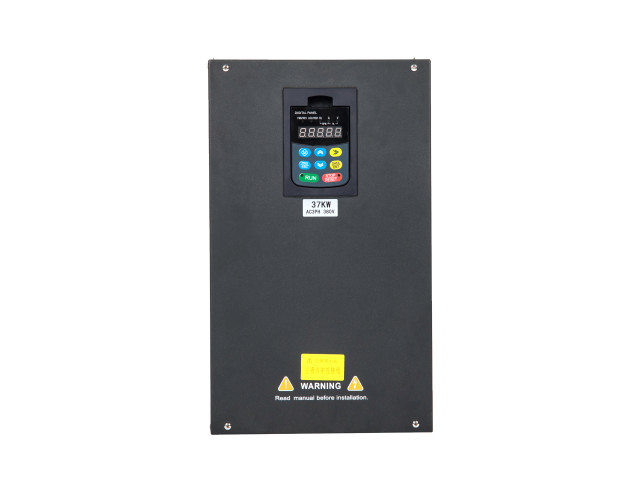

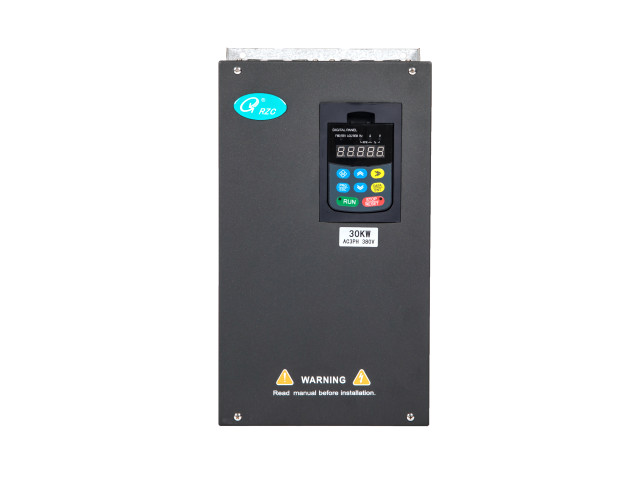

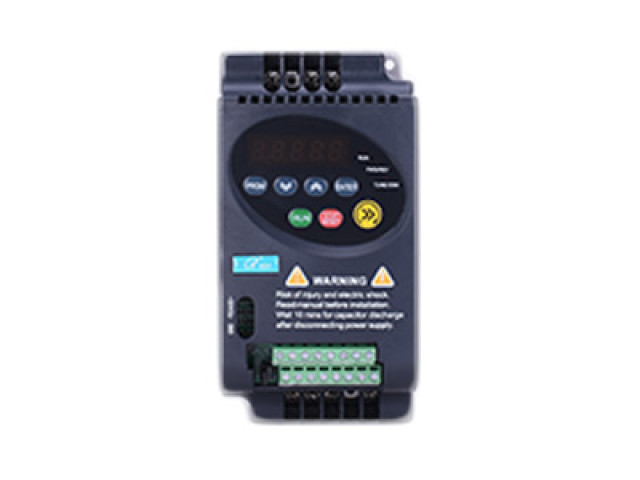

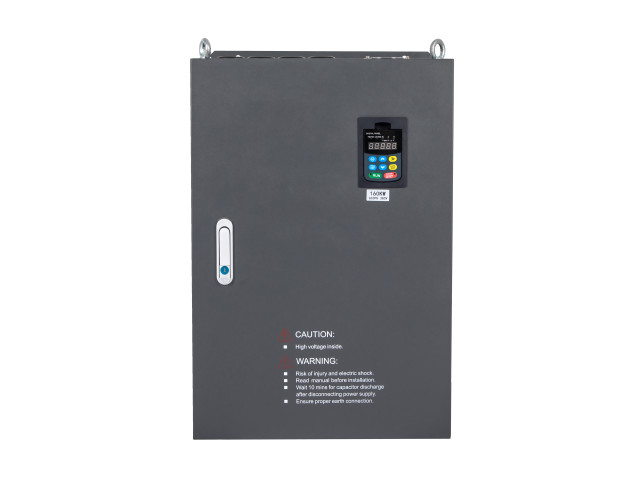

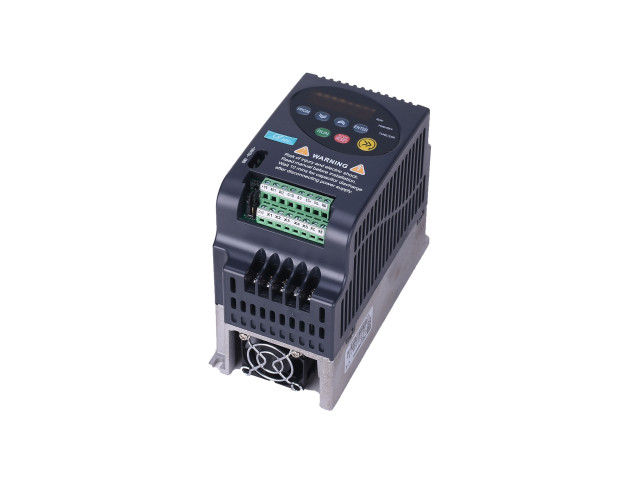

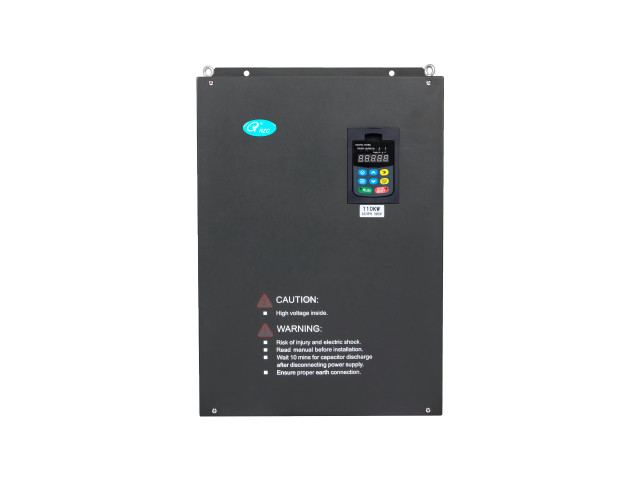

Product appearance and installation dimension specifications
|
Voltage level |
Type of aircraft |
Frequency converter model |
Shape and mounting dimensions (mm) |
|||||
|
W |
H |
D |
W1 |
H1 |
Mounting holes |
|||
|
220V |
A |
Q07-2S0004HE |
80 |
155 |
130 |
69.3 |
143 |
5 |
|
Q07-2S0007HE |
||||||||
|
Q07-2S0015HE |
||||||||
|
Q07-2S0022HE |
||||||||
|
B |
Q07-2S0037HE |
130 |
220 |
173 |
116 |
210 |
5 |
|
|
380V |
A |
Q07-4T0007HE |
80 |
155 |
130 |
69.3 |
143 |
5 |
|
Q07-4T0015HE |
||||||||
|
Q07-4T0022HE |
||||||||
|
C3H |
Q07-4T0040HE |
118 |
185 |
143 |
105 |
173 |
5 |
|
|
Q07-4T0055HE |
118 |
185 |
168 |
105 |
173 |
5 |
||
|
Q07-4T0075HE |
||||||||
|
DH |
Q07-4T0110HE |
130 |
220 |
173 |
116 |
210 |
5 |
|
|
S05 |
Q07-4T0150HE |
208 |
322 |
192 |
190 |
306 |
6 |
|
|
Q07-4T0180HE |
||||||||
|
Q07-4T0220HE |
||||||||
|
T30 |
Q07-4T0300HE |
220 |
420 |
190 |
185 |
404 |
6 |
|
|
Q07-4T0370HE |
||||||||
|
T21 |
Q07-4T0450HE |
256 |
470 |
222 |
196 |
450 |
7 |
|
|
Q07-4T0550HE |
||||||||
|
TF |
Q07-4T0750HE |
320 |
575 |
240 |
220 |
553 |
10 |
|
|
TG |
Q07-4T0900HE |
404 |
615 |
249 |
270 |
590 |
10 |
|
|
Q07-4T1100HE |
||||||||
|
TH |
Q07-4T1320HE |
466 |
745 |
325 |
343 |
715 |
12 |
|
|
Q07-4T1600HE |
||||||||
|
TI |
Q07-4T2000HE |
540 |
890 |
377 |
370 |
856 |
14 |
|
|
Q07-4T2800HE |
||||||||
|
TJ |
Q07-4T3150HE |
700 |
1010 |
385 |
520 |
975 |
14 |
|
|
Q07-4T3550HE |
||||||||
