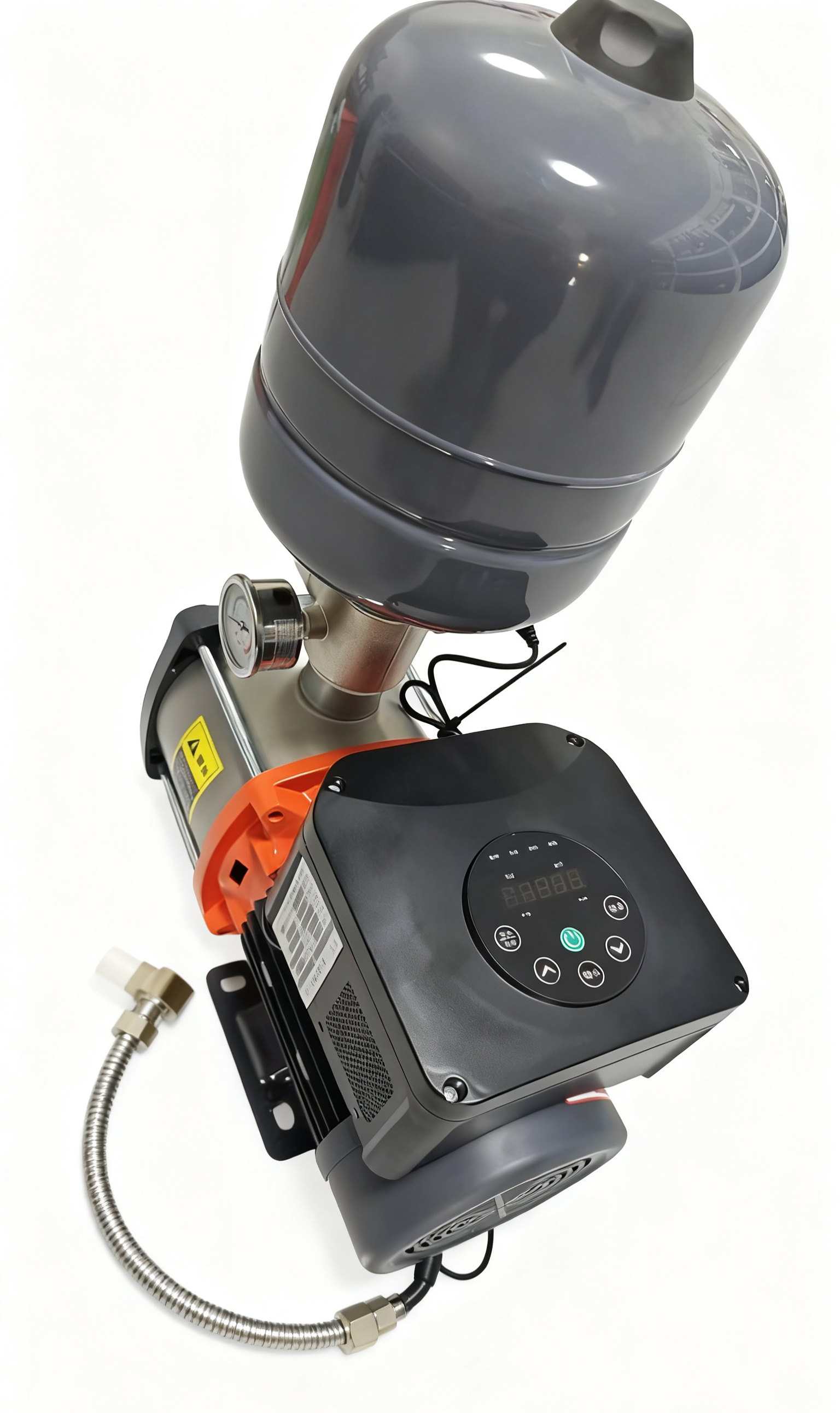

The Q02 Series is a dedicated variable frequency drive for domestic smart water pumps, featuring a compact design with automatic restart upon power restoration. It is suitable for domestic, estate, and villa pressure boosting systems.
Online Inquiry|
VFD Model |
Rated Output Power(KW） |
Input Current（A） |
Output current（A） |
Compatible Motor（KW） |
|
Single-phase input power supply：220V（-15% ～+15%），50/60Hz |
||||
|
Q02-2S0022H |
2.2 |
21.4 |
10.0 |
2.2 |
|
Three-phase input power supply：380V（-15% ～+15%），50/60Hz |
||||
|
Q02-4T0022H |
2.2 |
9.2 |
5.5 |
2.2 |
Lenth 185mm* Wideth 190mm* Height 100mm
