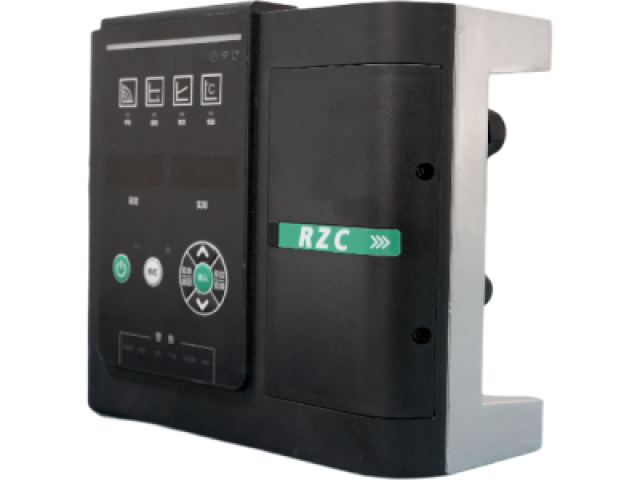

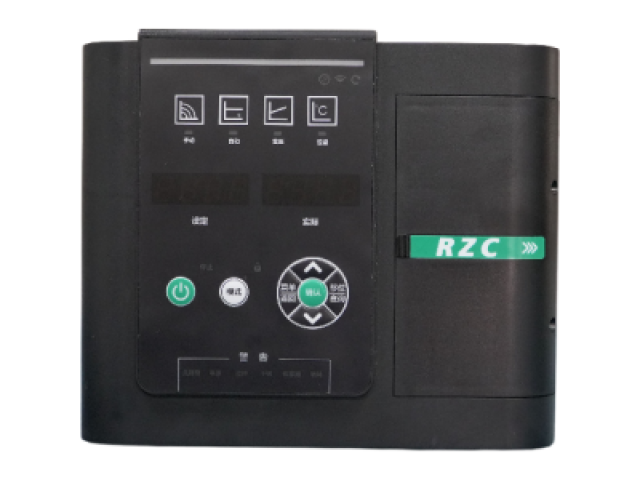

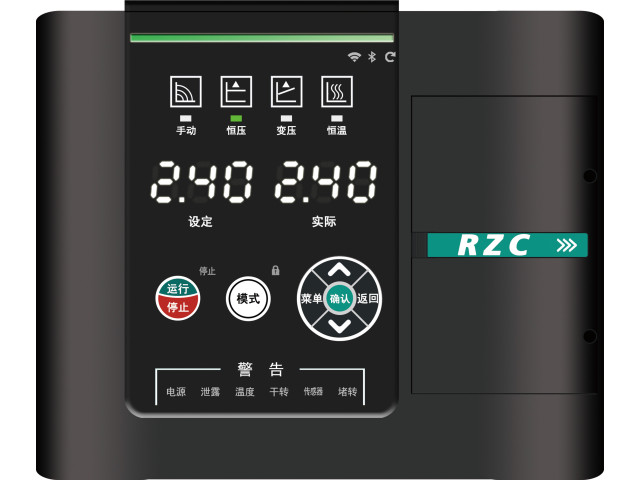

The Q30 is a commercial building constant-pressure water supply dedicated variable frequency drive featuring dry-running protection, burst pipe detection, sensor monitoring, and overpressure alarm functions. It is suitable for agricultural irrigation, schools, shopping malls, residential water supply, and similar applications.
Online Inquiry
|
VFD Model |
Rated Output Power (KW) |
Input current（A） |
Rated Output Current（A） |
Compatible Motor（KW） |
|
Single-phase input power supply: 220V (-15% to +15%), 50/60Hz |
||||
|
Q30-2S0015H |
1.5 |
8.0 |
7.0 |
1.5 |
|
Q30-2S0022H |
2.2 |
10.0 |
9.6 |
2.2 |
|
Q30-2S0030H |
3.0 |
14.0 |
12.5 |
3.0 |
|
Three-phase input power supply: 380V (-15% to +15%), 50/60Hz |
||||
|
Q30-4T0015H |
1.5 |
5.0 |
4.2 |
1.5 |
|
Q30-4T0022H |
2.2 |
5.8 |
5.5 |
2.2 |
|
Q30-4T0030H |
3.0 |
7.0 |
6.2 |
3.0 |
|
Q30-4T0040H |
4.0 |
10.8 |
9.0 |
4.0 |
|
Q30-4T0055H |
5.5 |
14.6 |
13.0 |
5.5 |
|
Q30-4T0075H |
7.5 |
18.0 |
17.0 |
7.5 |
|
Q30-4T0110H |
11.0 |
26.0 |
24 |
11 |
|
Q30-4T0150H |
15.0 |
35.0 |
32 |
15 |
|
Q30-4T0185H |
18.5 |
38.5 |
38.0 |
18.5 |
|
Q30-4T0220H |
22.0 |
46.0 |
45.0 |
22.0 |
|
Q30-4T0300H |
30.0 |
62.0 |
60.0 |
30.0 |
|
Item No |
External Dimensions (MM) |
Installation Dimensions (MM) |
|||||
|
|
|
W |
H |
D |
W1 |
W2 |
H1 |
|
S31 |
Q30-2S0015H |
257 |
221 |
115.5 |
148 |
117.5 |
22 |
|
Q30-2S0022H |
|||||||
|
Q30-2S0030H |
|||||||
|
Q30-4T0015H |
257 |
221 |
115.5 |
148 |
117.5 |
22 |
|
|
Q30-4T0022H |
|||||||
|
Q30-4T0030H |
|||||||
|
Q30-4T0040H |
|||||||
|
Q30-4T0055H |
|||||||
|
Q30-4T0075H |
|||||||
|
S32 |
Q30-4T0110H |
312 |
276 |
140.7 |
252 |
266 |
48.7 |
|
Q30-4T0150H |
|||||||
|
Q30-4T0185H |
|||||||
|
Q30-4T0220H |
|||||||
|
Q30-4T0300H |
|||||||
