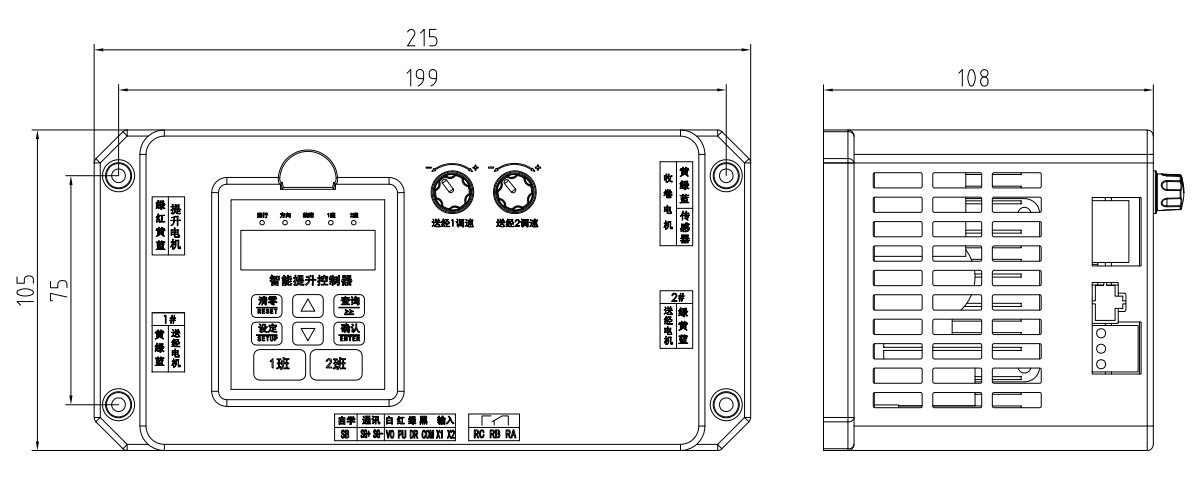

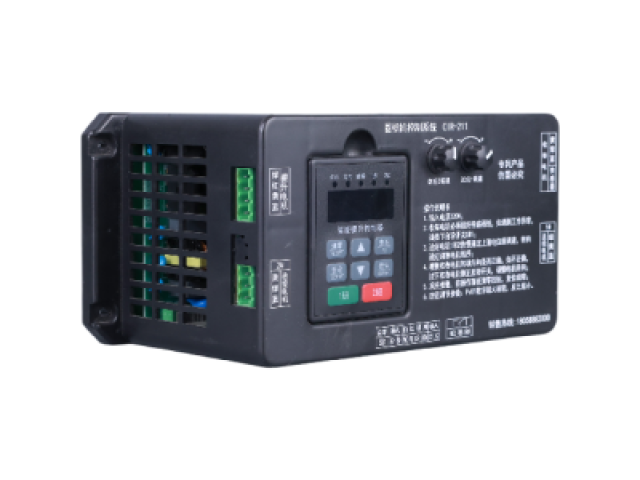

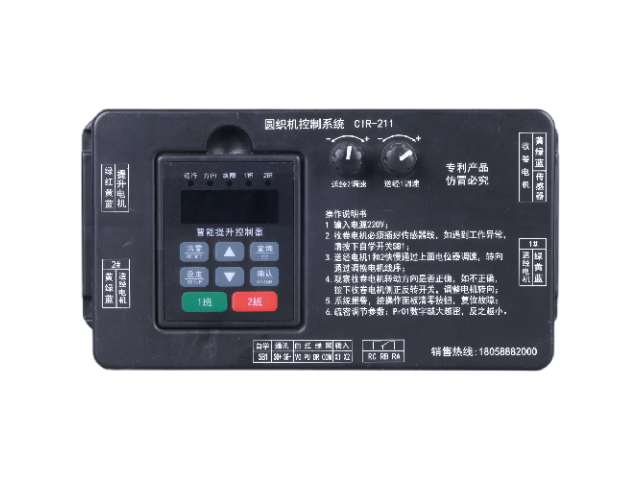

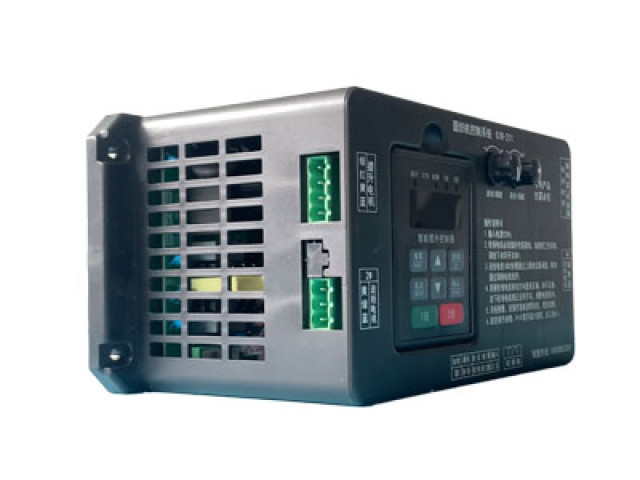

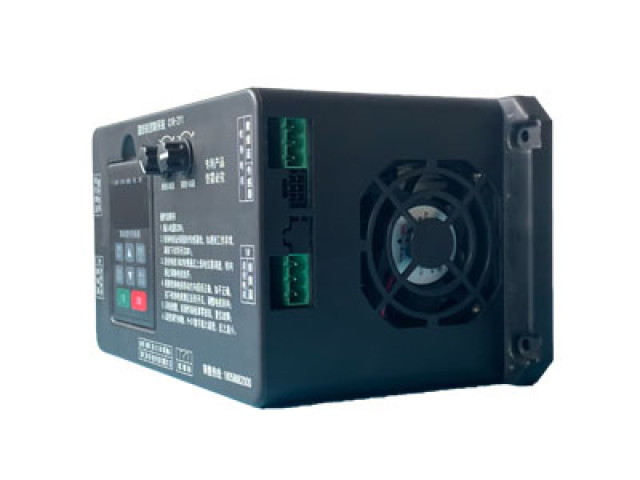

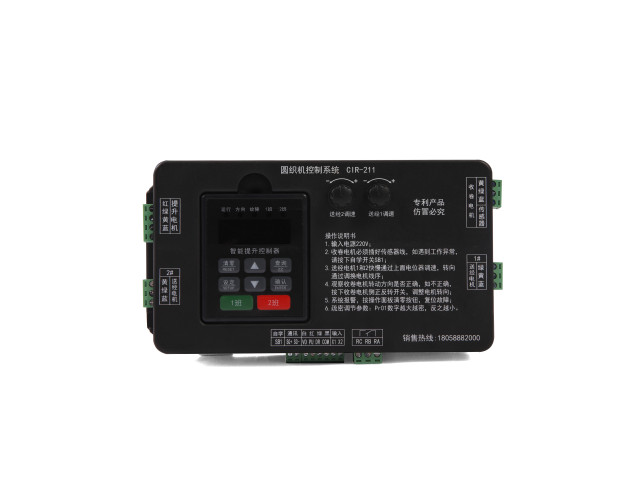

CIR-211 Circular Loom Integrated Controller

Circular loom integrated machine controller is an industrial equipment for weaving cone cloth, easy to operate, safe and reliable.

All motors except the main engine are integrated control: including lifting, sending, winding motors;
Lifting, sending and winding motors to maintain synchronous and full linkage control;
2 warp-feeding motors can be independently debugged in the same proportion;
Can work independently with large watches or cooperate with customized touch screen control;
All adopt highly reliable and fast plug terminals, which is greatly convenient for replacement, installation and maintenance;
Built-in three-shift meter meter function, can be used with the touch screen to do fixed roll shutdown;
Supports a variety of external inputs with or without encoders;
A set of built-in multi-function viable output ports.

NO.	Function description	Set the range	Factory value
Pr.00	Weft Password Protection Settings	3 or 4 digits are valid, 00: unencrypted	00
Pr.01	Weft density settings	d200 ~ 60000 arbitrary subdivision, the larger the number, the denser	1000
Pr.02	Operating Current(A)	d10~d60 (the maximum value of different models is different)	4.5
Pr.03	Shutdown brake current	d20～100%	75%
Pr.04	Meter factor	d01～30000	2166
Pr.05	Pulse filter constant	d0～1000； 0: No filter function	128
Pr.06	Direction of motor rotation	d0/1;0: forward, 1: reverse;	00
Pr.07	Feature mode selection	d0000～9999	0000
Pr.07	Feature mode selection	Individual bits: pulse mode: 0: AB phase pulse timing sampling mode<4KH; 1: EQEP: AB phase quarter-by-four mode; 2: EQEP: pulse + direction rise along the sampling mode;	0000

CIR-211 circular loom all-in-one machine controller
